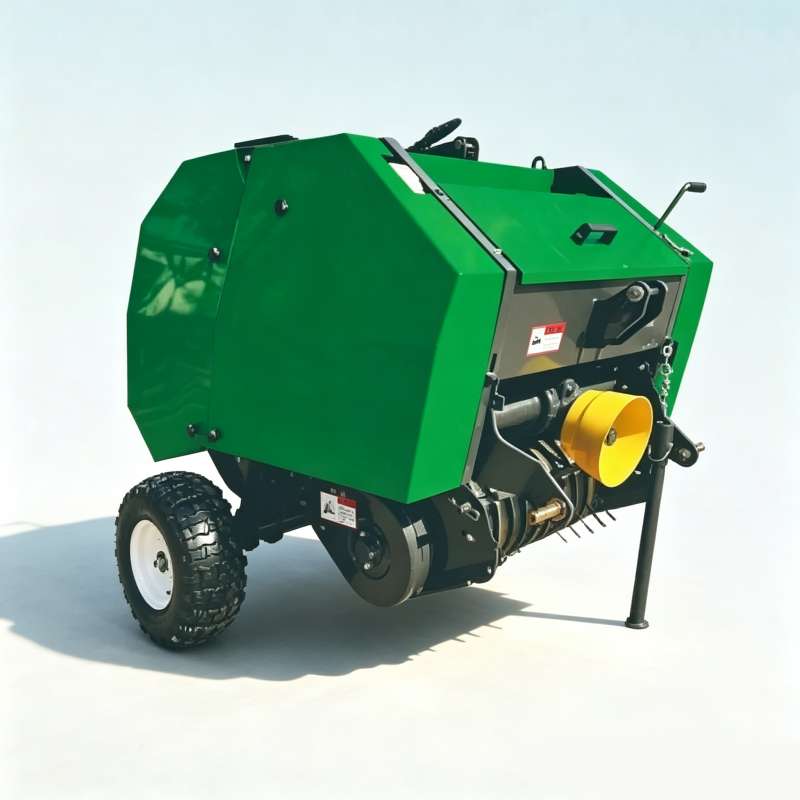

9YK-870 Mini Round Baler 800mm Pickup Width Compact Trailed Baler

Efficient Compact Baler | 800mm Direct Spring Tooth Feed | Ideal for 25-50 HP Tractors

Equipment Overview: The Orchard & Small Farm Specialist

Navigating tight spaces in orchards, vineyards, and small family farms requires equipment that is both robust and agile. As an experienced forage harvester supplier, we designed the 9YK-870 mini round baler specifically for these challenging environments. This trailed machine excels in collecting and compressing wheat straw, rice straw, alfalfa, and pasture grasses into dense, easily manageable mini round bales.

Weighing only 440 kg and requiring a minimal 25-50 HP tractor input, the 9YK-870 minimizes soil compaction while maximizing harvest efficiency. It transforms loose agricultural residues into perfectly formed Φ630x700 mm bales. These compact bales are ideal for manual handling, daily livestock rationing, and fitting into small storage sheds where large commercial balers simply cannot operate.

Technical Parameters (Model 9YK-870)

Working Principle & Failure Prevention

Maximizing the lifespan of the 9YK-870 requires understanding its simple yet effective mechanics:

• Gathering & Feeding: The spring-tooth pickup lifts the swath directly into the roller chamber. Prevention: Maintain a steady ground speed (2-5 km/h) and ensure the PTO is engaged at 540 RPM before entering the windrow to prevent the pickup from choking.
• Chamber Rolling: The internal rollers tumble the forage, building core density. Prevention: Regularly grease the roller bearings. A dry bearing will overheat, potentially seizing the roller and snapping the main drive chain.
• Rope Tying & Ejection: Once the bale reaches the set diameter, the twine arm drops, wrapping the bale before the tailgate opens. Prevention: Verify the twine tensioner daily. Loose tension causes slipped knots, while excessive tension causes the twine to snap mid-wrap.

Application Scenarios & Field Suitability

The 9YK-870 is highly adaptable for diverse small-scale operations. For optimal fermentation and safe storage, follow these moisture parameters:

• Leguminous Forage (Alfalfa, Clover): Optimal baling moisture is 17%-23%. The steel rollers preserve the protein-rich leaves far better than aggressive belt balers, minimizing leaf shatter in the field.
• Gramineous Forage & Grain Straw (Wheat/Rice): Target 10%-23% moisture. The direct feed mechanism easily processes dry, slick straw without intake blockages.
• Field Topography & Maneuverability: Safely operates on undulating terrain and slopes ≤8°. Its compact 1300x1300x1350 mm footprint and light 440kg weight make it ideal for hilly pasturelands, narrow vineyard rows, and muddy paddy fields where heavy equipment sinks.
