விவசாய சுற்று பேலர் - 9YG-2.24D S9000 கிளாசிக்

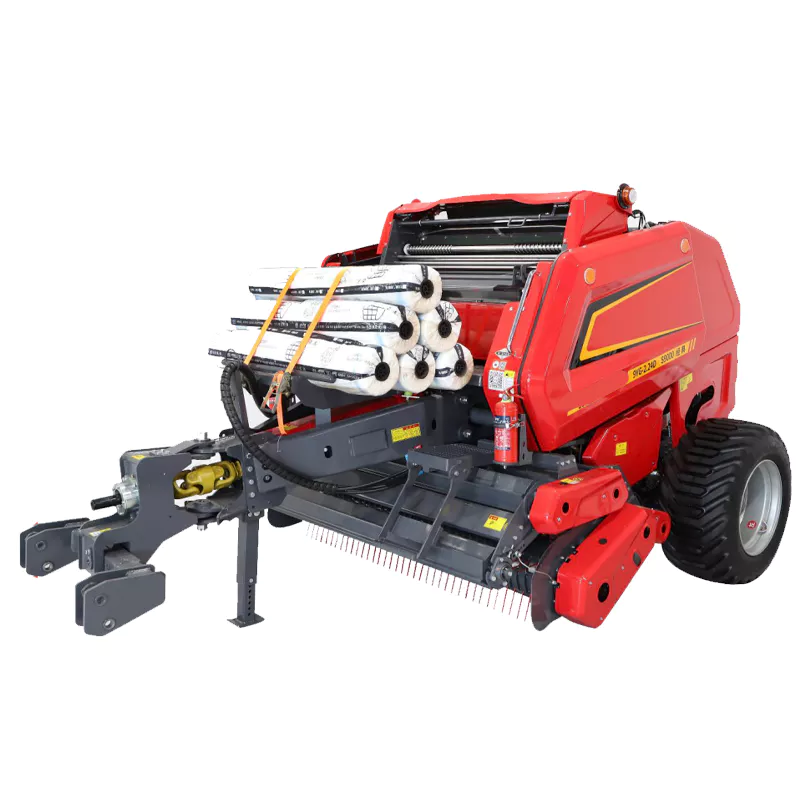

Product Overview: 9YG-2.24D S9000 Classic Round Baler

The 9YG-2.24D S9000 Classic is a high-efficiency, pull-type agricultural round baler engineered for reliability and performance in demanding field conditions. With a 2.24-meter pickup width, sensor-controlled bale density, and robust roller-based compression chamber, it delivers uniform, high-density net-wrapped bales ideal for hay, straw, and biomass applications.

Designed for large-scale farms, agricultural cooperatives, and professional custom harvesting services, the S9000 Classic balances proven mechanical durability with smart operational features—making it a cost-effective workhorse for regions prioritizing productivity, ease of maintenance, and long-term value.

Built on years of field-tested design, this model serves as the trusted foundation of our round baler series—delivering consistent results season after season.



Product Parameters

Key Innovations & Technical Advantages

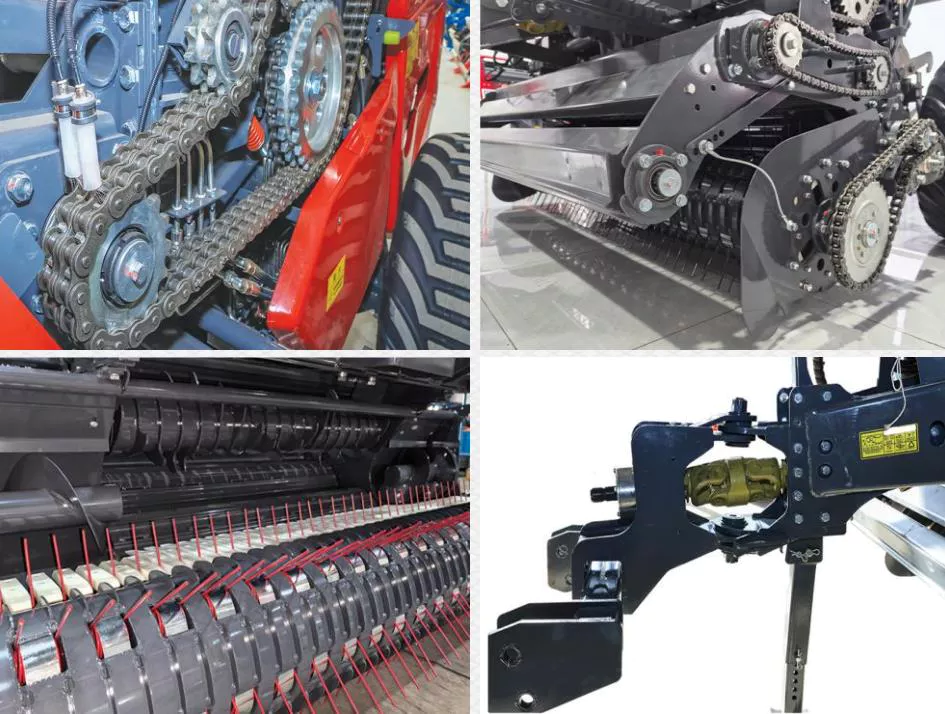

1. Advanced Drawbar & Driveline System

The baler features a self-developed dual universal joint (double cross-joint) drive shaft, paired with an integrated safety torque-limiting shaft. This design significantly reduces stress on transmission components during sharp turns—especially critical for small or irregular fields. By preventing driveline jamming and torsional overload, it enhances machine longevity and ensures smooth operation in challenging terrain.

2. Upgraded Hydraulic System for Faster, Smoother Operation

Equipped with H-type flare (bite-type) hydraulic fittings, the system withstands higher working pressures, enabling faster bale chamber opening and closing cycles. A dedicated buffer cylinder is installed at the rear chamber to absorb impact during closure, effectively minimizing vibration-induced wear on structural components and extending service life.

3. Heavy-Duty Gearbox & Dual-Sprocket Chamber Drive

The reinforced heavy-duty gearbox delivers increased transmission torque, ensuring consistent power delivery even under high crop loads. Coupled with a dual-side sprocket chain drive for the compression chamber, this configuration provides balanced force distribution, resulting in smoother bale formation, reduced mechanical strain, and higher operational efficiency—even during extended daily use.

Applications & Benefits

Ideal Operating Conditions

The 9YG-2.24D S9000 Classic is a versatile agricultural baler engineered for diverse farming environments—from large-scale grain-producing regions to livestock-focused pastures. It excels in:

• Dry or semi-dry hay fields (alfalfa, clover, grass) as a reliable hay baler
• Post-harvest straw collection after wheat, rice, or corn harvest—ideal for straw baling operations
• Biomass recovery of crop residues like reed, sorghum stalks, or oilseed rape
• Small to medium-sized plots with frequent turns, thanks to its optimized driveline and compact turning radius

Whether on flat plains or gently rolling terrain, this round baler delivers consistent performance under real-world field conditions.

Economic Benefits

• ⏱️ Boosts productivity: With a working speed of 5–35 km/h and output of 40–100 bales/hour, the round baler significantly reduces field time compared to manual or outdated equipment.
• ? Lowers operational costs: Robust design minimizes breakdowns; easy maintenance cuts labor and spare parts expenses by up to 30%.
• ? Improves bale quality: Uniform, high-density hay bales (100–200 kg/m³) command better prices in feed markets and reduce transport/storage losses.
• ? Compatible with mid-range tractors (55–100 kW), making it accessible for cost-conscious farms without sacrificing efficiency.

Social & Environmental Benefits

• ♻️ Promotes sustainable farming: Efficient straw baling enables crop residue recycling—reducing open-field burning and lowering air pollution.
• ?‍? Reduces labor dependency: Automates a traditionally labor-intensive task, easing pressure on rural labor shortages.
• ? Supports circular agriculture: Baled straw becomes valuable bedding, biofuel feedstock, or organic fertilizer—closing the resource loop.

? Real Stories, Real Results: Farmers Trust the S9000 Classic Round Baler

---

1. United States – Midwest Hay Producer

• Customer: Daniel Miller, Owner of Miller Hay Farms
• Location: Nebraska, USA
• Purchase Date: April 2024
• Units Purchased: 3 unit
• Application: Alfalfa and grass hay baling for dairy feed
• Testimonial:


  “We needed a reliable hay baler under $30K that could keep up with our 90 HP tractor. The S9000 Classic delivered—100+ bales/day with zero jams during our wet spring harvest. The net wrap is tight, and the pickup handles lodged hay better than our old John Deere. For the price, it’s unbeatable.”

---

2. Ukraine – Grain & Livestock Cooperative

• Customer: AgroSoyuz Tovarystvo (AgroSoyuz Cooperative)
• Location: Poltava Region, Ukraine
• Purchase Date: July 2024
• Units Purchased: 5 units
• Application: Wheat straw baling for cattle bedding and export
• Testimonial:


  “After sanctions limited spare parts for European machines, we switched to this Chinese round baler. It runs 12 hours a day on 85 HP tractors. The dual-side chain drive prevents belt slippage—a big issue with our old models. We’ve already ordered a third unit.”



---

3. Mongolia – Steppe Pastoral Farm

• Customer: Batbayar Enkhbold, Manager of Gobi Agro LLC
• Location: Övörkhangai Province, Mongolia
• Purchase Date: September 2024
• Units Purchased: 1 unit
• Application: Natural meadow hay baling for winter livestock feed
• Testimonial:


  “Our pastures are rocky and uneven, but this agricultural baler handles it well. The ground clearance is adjustable, and the safety torque shaft saved us twice when we hit hidden stones. Delivery from China took only 22 days—faster than local dealers!”

---

4. Argentina – Soybean Residue Contractor

• Customer: CampoLimpio Servicios Agrícolas
• Location: Córdoba, Argentina
• Purchase Date: February 2025
• Units Purchased: 3 units
• Application: Soybean and corn stalk baling for biomass power plants
• Testimonial:


  “We tested five balers for high-moisture residue. Only the S9000 Classic didn’t clog. Its spring-tooth pickup + anti-wrap roller combo works like magic. ROI in 6 months—now we’re replacing all our fleet.”

---

5. Vietnam – Rice Straw Recycling Initiative

• Customer: Mekong Green Energy Co., Ltd
• Location: An Giang Province, Vietnam
• Purchase Date: November 2024
• Units Purchased: 8 units (for farmer cooperative program)
• Application: Rice straw collection to supply pellet factories
• Testimonial:


  “Government banned field burning, so we needed affordable straw balers fast. This round baler runs on 75 HP tractors common here. Simple operation—farmers mastered it in one demo. Maintenance is easy, and parts arrive from Guangzhou in 3 days.”\

FAQ

Q: What crops is this baler suitable for?

A: The 9YG-2.24D S9000 Classic is suitable for a variety of crops including hay (alfalfa, clover), straw (wheat, rice), and biomass materials like sorghum stalks.

Q: What tractor power is required?

A: This round baler operates efficiently with tractors ranging from 55 to 100 kW (75 to 135 HP).

Q: What is the yield under wet straw conditions?

A: Under wet conditions, the output can vary but typically ranges between 40 to 60 bales per hour due to slower processing speeds.

Q: What are the upgrades compared to the older S8000 model?

A: Compared to the S8000, the S9000 Classic features enhanced driveline durability, improved hydraulic systems, and increased transmission torque for better performance in challenging terrains.
