Product Overview: Revolutionizing Forage Harvesting

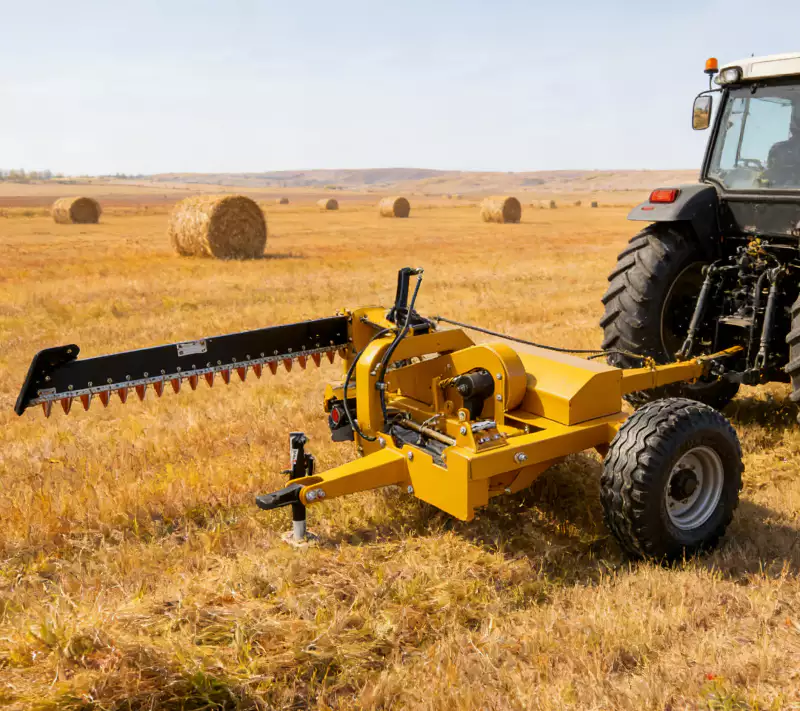

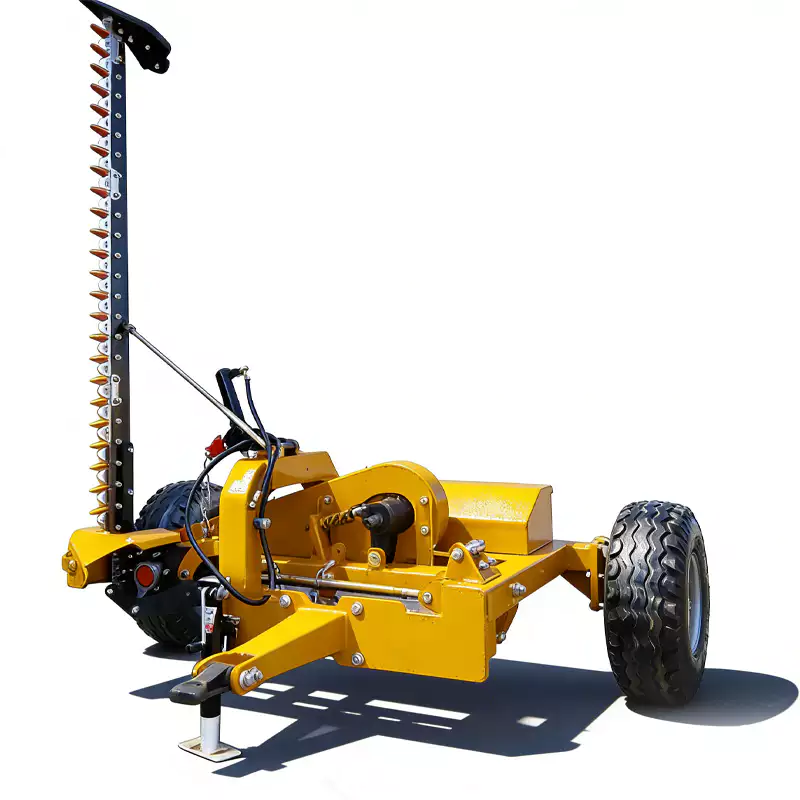

De 9GD-2.5 Trailed Single Knife Mower stands as a monumental achievement in the realm of agricultural forage harvesting. Engineered from the ground up to address the complex demands of modern pastoral farming, this Upgraded Version Sickle Bar Mower is the definitive solution for cutting natural prairie grasses, planted alfalfa, and diverse cultivated pastures. In an agricultural landscape where fuel costs and equipment maintenance dictate profitability, the 9GD-2.5 emerges as a highly efficient alternative to power-hungry rotary mowers. It achieves a staggering cutting width of 2.5 meters while requiring a mere 15 to 35 kW (approximately 20 to 50 horsepower) of tractor power. This extraordinary efficiency ensures that small to medium-sized agricultural operations can achieve industrial-scale harvesting productivity without the massive capital expenditure associated with high-horsepower tractors.

The core philosophy behind this Trailed Single Knife Mower is structural rationality combined with operational simplicity. The upgraded hydraulic lifting mechanism allows a single tractor operator to effortlessly raise and lower the entire cutting apparatus from the comfort of the driver’s cabin. This feature is not merely a convenience; it is a critical operational advantage that minimizes downtime during headland turns and instantly protects the cutting bar from hidden field obstacles. Executing operations in strict accordance with the GB/T10940-2008 national standards for reciprocating mowers, this implement guarantees a clean, bruising-free shear that promotes rapid regrowth of the forage crop.

Crucial Application Note: While highly versatile, to maintain the structural integrity and longevity of the high-speed reciprocating blades, the 9GD-2.5 is specifically optimized for open pastures and is not suitable for paddy fields, deep wetlands, dense forestry applications, or terrain heavily infested with hidden rocks and large tree stumps.

Core Technology Quick Read

• ✔️ High-Frequency Reciprocating Shear: Utilizes an eccentric crank mechanism to drive 34 moving blades across stationary ledger plates, creating a scissor-like cutting action that cleanly severs plant stems, maximizing crop nutritional retention.
• ✔️ Integrated Hydraulic Articulation: Replaces outdated manual lift levers with a heavy-duty hydraulic cylinder connected to the tractor’s remote valves, allowing instantaneous obstacle avoidance and swift transport configuration.
• ✔️ Independent Trailed Chassis: Features its own pneumatic wheel axle, transferring the 490 kg structural mass away from the tractor’s three-point linkage. This trailed dynamic ensures perfect ground contour following and eliminates front-end lift on smaller tractors.
• ✔️ Ultra-Low PTO Drag: Engineered to operate flawlessly at a standard 540 r/min PTO speed with minimal mechanical friction, allowing older or lower-horsepower tractors to achieve a productivity of up to 3.0 hectares per hour.

🚜 Universal Tractor Compatibility & Power Matching

The engineering brilliance of the 9GD-2.5 lies in its democratic power requirements. To deploy this heavy-duty Sickle Bar Mower, your operation merely requires a standard agricultural wheeled tractor equipped with a rear PTO generating 540 r/min, and a single rear hydraulic remote to actuate the lifting cylinder. Because it is a trailed implement with its own support wheels bearing the 490 kg weight, it completely prevents the dangerous front-axle lifting often experienced when mounting heavy equipment on the 3-point linkage of compact tractors.

Legal & Compatibility Disclaimer: This implement features standardized international hitching and PTO splines, making it highly adaptable to a vast array of global tractor brands. This includes, but is strictly not limited to, models from John Deere, Kubota, New Holland, Massey Ferguson, Mahindra, Fendt, and Case IH. The explicit mention of these commercial brands serves solely as a practical reference guide for farmers and procurement managers to ascertain equipment compatibility and power sizing. It does not imply any direct corporate affiliation, endorsement, or trademark infringement.

Deep Dive: Structural Details & Design Philosophy

While many modern farms look toward high-speed rotary equipment, the engineering philosophy behind our upgraded 9GD-2.5 Trailed Single Knife Mower is rooted in “maximum yield with minimal input.” Drawing on structural principles similar to those found in our heavy-duty high-efficiency round balers, the chassis is constructed from thick-walled, seam-welded tubular steel. This provides immense torsional rigidity, preventing the 2.5m cutter bar from flexing or bowing when subjected to heavy, dense swaths of wet crop.

The heart of the machine is the cutter bar assembly. The ledger plates (stationary guards) are drop-forged and precision-milled to create an exact tolerance gap with the 34 moving blades. This micro-gap is what produces the perfect shear. Furthermore, the pitman arm connecting the eccentric drive to the knife head utilizes a heavy-duty ball joint, accommodating the vertical articulation of the cutter bar without binding the drive mechanism. The inclusion of a robust spring-tensioned breakaway latch ensures that if a solid, immovable object is struck, the cutter bar swings backward, preventing chassis distortion.

Drivetrain & Fleet Selection Guide

Procuring the correct implement involves matching your existing fleet capabilities. Use this rapid selection matrix to ensure the 9GD-2.5 aligns with your ag-operations.

[Texas, USA] Extreme Working Condition Practical Research

Client Profile: Large-scale dryland hay exporter utilizing older, low-HP tractor fleets.

Operational Challenge: High ambient temperatures leading to rapid fuel evaporation and tractor overheating when running heavy rotary gear. Needed a 2.5m cut without exceeding 40 HP.

“The 9GD-2.5 solved our power bottleneck. We pull it behind our old 35HP utility tractors at 8 km/h all day long. The hydraulic lift saves our blades from the hidden mesquite stumps we occasionally miss. Fuel consumption dropped by 40% compared to our previous setups.”

[Queensland, Australia] Off-Road Terrain Adaptation Guide

Client Profile: Vast outback cattle station harvesting native Mitchell grass.

Operational Challenge: Extremely uneven, undulating terrain that caused 3-point mounted mowers to scalp the earth and destroy blades constantly.

“The trailed chassis is a game-changer. Because it rides on its own wheels, it floats over the ruts independently of the tractor. The reciprocating blades handle the wiry grass perfectly, and the single operator setup keeps our labor costs down.”

[Pampas, Argentina] Local Industry Application Cases

Client Profile: Premium alfalfa hay producer for the dairy market.

Operational Challenge: Maximizing leaf retention to secure top-tier market prices based on Relative Feed Quality (RFQ) testing.

“We abandoned flail and rotary mowers years ago due to leaf shatter. This Upgraded Trailed Single Knife Mower gives us the surgical cut we need. The 34 blades snip the stem flawlessly. Our protein tests have improved by an average of 1.5% since switching to this precise cutting method.”

[Normandy, France] High Yield Pasture Practical Research

Client Profile: Intensive rotational grazing dairy cooperative.

Operational Challenge: Harvesting heavy, dense, wet ryegrass without clogging the cutting mechanism.

“We were concerned the sickle bar might plug in our thick coastal grass. However, the high stroke rate generated by the 540 rpm PTO keeps the cutter bar clear. The 50-70mm stubble height is perfect; it prevents us from sweeping dirt into the swath, keeping our silage ash-free.”

[Alberta, Canada] Short Season Harvesting Guide

Client Profile: Broadacre mixed farming operation.

Operational Challenge: Very narrow weather windows requiring rapid deployment and high hourly productivity before autumn frosts.

“When the weather breaks, we have to move. The 2.5m cutting width allows us to drop up to 3 hectares an hour. The hydraulic lift means we don’t even stop at the end of the rows; we just lift, turn, drop, and keep cutting. It’s an incredibly efficient piece of heavy-duty equipment.”

Critical Adjustments & Pre-Operation Precautions

To ensure the longevity of the 9GD-2.5 and the safety of the operator, strict adherence to engineering maintenance protocols is mandatory.

• Knife Register Adjustment: Ensure that at the extreme left and right strokes of the pitman arm, the moving blade centers perfectly over the stationary ledger plate. Misalignment causes uneven tearing rather than clean shearing.
• Lubrication Protocol: The eccentric wheel bearings, pitman ball joint, and all PTO universal joints must be greased every 8-10 working hours using high-temperature lithium grease.
• Breakaway Latch Tension: Test the spring tension on the breakaway mechanism before the season begins. It must be tight enough to hold the 2.5m bar rigid through heavy crop, but loose enough to trip if a solid post or hidden boulder is struck.
• Hydraulic Bleeding: Upon initial setup, cycle the hydraulic lifting cylinder 5-6 times fully up and down to bleed any trapped air from the lines, ensuring smooth and instant lift capability.

The global agricultural trend is increasingly shifting back toward high-efficiency, low-input machinery. While massive 200HP tractors pulling complex disc mowers dominate contractor media, the economic reality for the majority of pastoral farmers revolves around capital preservation and fuel economy. The 9GD-2.5 Trailed Single Knife Mower capitalizes on this trend by delivering a high-output 2.5m cutting width using tractors as small as 20 HP.

Return on Investment (ROI): The mathematical ROI of this implement is exceptionally rapid. A standard 30 HP tractor running this mower consumes a fraction of the diesel per hour compared to an 80 HP tractor running a rotary unit of the same width. Furthermore, the clean scissor-cut accelerates pasture recovery time by several days per cycle. Over a 3-cut season across 100 hectares, the accumulated savings in diesel, the reduction in tractor depreciation, and the increased tonnage from faster regrowth often offset the initial purchase price of the 9GD-2.5 within the very first harvest season.

Complete Your Mechanized Agricultural Fleet

We are a full-scale premium agricultural machinery manufacturer. From cutting to packaging, we provide robust engineering solutions that optimize every step of your farm’s workflow. Explore our highly compatible downstream processing equipment:

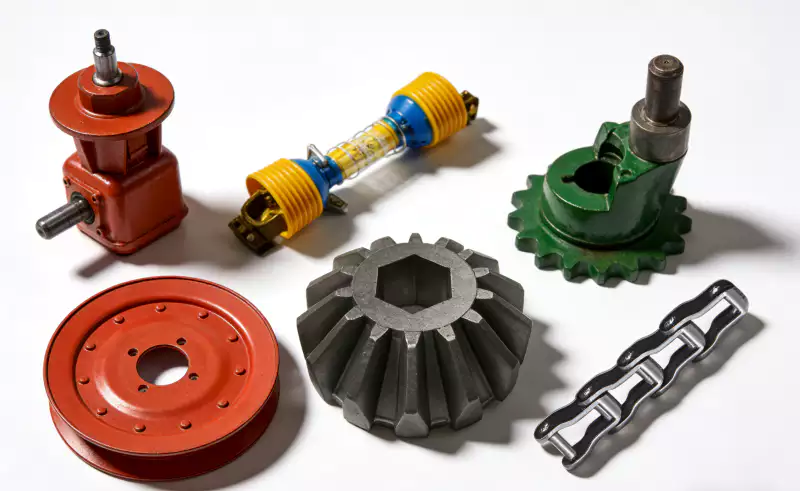

OEM Components Available: We also manufacture and supply premium PTO shafts, agricultural gearboxes, forged gears, pulleys, sprockets, and high-tensile drive chains for global distributors.
